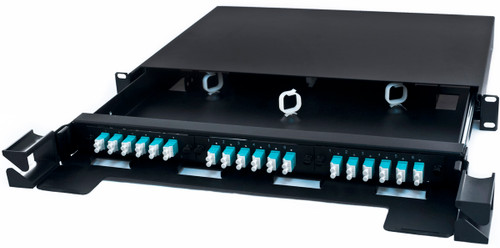

FBC Series rack mount patch panels offer high density and occupy minimal rack space. Panels accept Opticonx MAP series adapter plates in low, medium and high density configurations. Every fiber adapter option is supported. They are fully customizable and feature patch and cabling compartments, removable front and rear doors for easy cable access and integrated front and rear cable management. FBC series rack mount panels are available in 1U, 2U, and 4U rack heights that can accommodate 6 to 288 fibers. FBC panels also accept P3Link Xtreme modules.

Features

16 ga. Powder Coated Steel

• Integral cable and bend radius management
• Separate patching and cabling access doors
• Accommodates P3Link Xtreme Cassettes

FBC series rack mount panels accept MAP(modular adapter panels) series adapters. They are field or factory configured. All connector types are supported. FBC series also accept P3Link Xtreme modules when used with the P3XRF-2 bracket.

Modular Adapter Panel Capacity: 3

Rack Space Units Occupied: 1

Dimensions L x H x D (inches): 17.375 x 16.25 x 1.73

Weight: 11.0 Lbs
