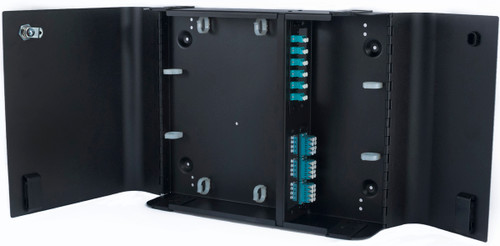

WMP Series wall mount hardware offer high density and occupy minimal wall space. Panels accept Opticonx MAP series adapter plates in low, medium and high density configurations. Every fiber adapter option is supported. They are fully customizeable and feature patch and cabling compartments and doors for easy cable access and integrated front and rear cable management. WMP series wall mount panels are available in 2, 4, 8, and 12 position versions that can accommodate 12 to 288 fibers. WMP panels also accept P3Link Xtreme modules.

Features

• 16 ga. Powder Coated Steel
• Integral cable and bend radius management
• Separate patching and cabling access doors
• Accommodates P3Link Xtreme Cassettes

WMP series wall mount panels accept MAP(modular adapter panels) series adapters. They are field or factory configured. All connector types are supported. WMP series also accept P3Link Xtreme modules when used with the P3XRF-2 bracket.

Modular Adapter Panel Capacity: 12

Dimensions L x H x D (inches): 15.0 x 12.0 x 6.0

Weight: 17.8 Lbs
